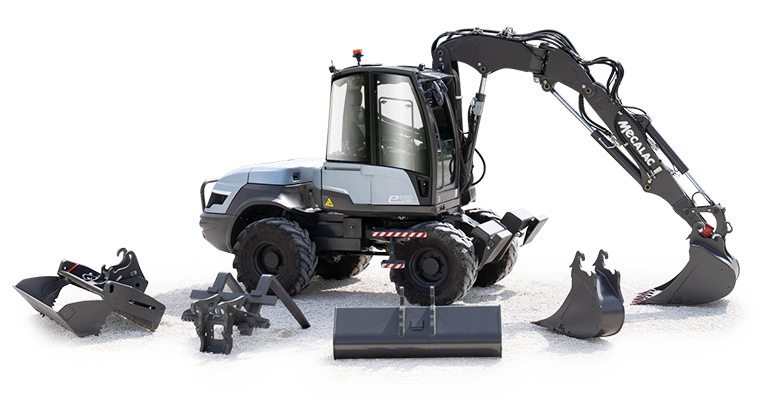

The electric version of the 12MTX fits perfectly within Mecalac’s philosophy of moving towards urban construction sites that are ever-more compact, efficient and environmentally friendly. The architecture of the diesel 12MTX makes it the natural forerunner of the electric version, so the location for the engine now houses a Lithium Nickel-Manganese-Cobalt (NMC) battery technology, ideal for on-board solutions.
This technology combines weight/power/quality ratios that are far superior to conventional batteries with an optimized service life and total safety.
| Total operating weight | 11 300 kg (24,912 lbs) | |
|---|---|---|
| Rated storage capacity | 150 kWh | |
| Power supply | 32A 380V three phase (22kW) | |
| Battery runtime | 8 hrs | |
| Tail swing radius | 1385 mm (4’6’’) | |
| Minimum full swing diameter | 2770 mm (9’1’’) | |
| Travel speed | 25 km/h (15.5 mph) | |
| Motorisation | Electric | |
| Overall width | 2383 mm (7’8’’) | |
| Break-out force / Loader | 6400 daN (14,390 lb) | |
| Maximum depth | 4100 mm (13’4”) | |
| Tear-out force / Excavator | 3400 daN (7,640 lbf) | |
| Break-out force / Excavator | 6150 daN (13,820 lbf) | |
| Standard bucket volume | 750 l | |
| + and – with forks | + 6000 mm (+19’8”) / – 3700 mm (-12’1”) | |
| Maximum reach | 7125 mm (23’4”) |
