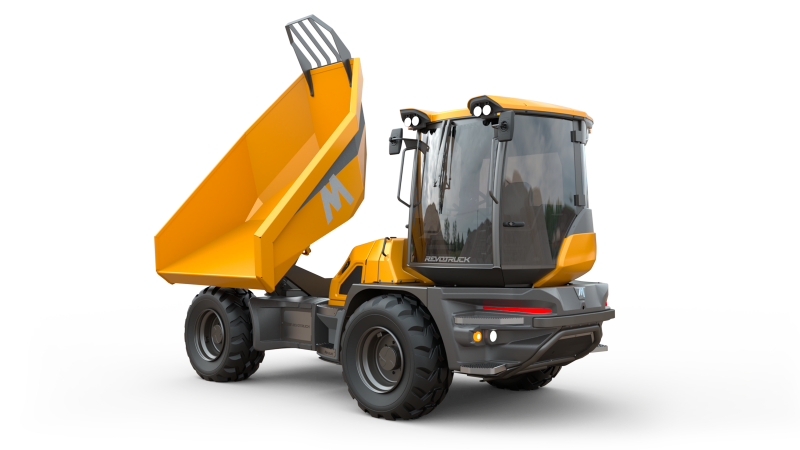

Mecalac has created the Revotruck, a unique piece of engineering that combines the revolution of the cab with off-road truck capabilities. Operators can now rotate the entire cab at the touch of a button to keep their vision and focus on the job and obstacles on site. The exclusive chassis with central oscillation ensures stability and traction in all ground conditions.
Together with extreme ease of use and accessibility, the Revotruck makes material transport smarter and safer.
The Revotruck 6 offers a traditional 6-ton (13,228 lbs) payload and incorporates the latest Mecalac innovations, drawing upon the extensive know-how and heritage in site dumper manufacturing and market.
| Total operating weight | 5915 kg (13,040 lbs) | |
|---|---|---|
| Engine power | 55 kW (74 hp) | |
| Emissions standards | EU Stage V / U.S EPA Tier 4 Final | |
| Skip type | Swivel | |
| Payload | 6000 kg (13,228 lbs) | |
| Maximum skip capacity (Heaped) | 3,3 m3 (4.3 yd3) | |
| Transmission | Hydrostatic | |
| Travel speed | 28kph (17.4mph) | |
| Operator environment | ROPS / FOPS Rotating Cab 225° | |
| Overall width | 2287 mm (7’6’’) | |
| Overall length | 4894 mm (16’1’’) | |
| Overall height | 2805 mm (9’2’’) | |
| Dumping height, skip tipped | 1284 mm (4’3”) |
