Operating Weight 7320 kg
Overall Width 2310 mm
Turning Circle 7900 mm
Travel Speed 38 km/h
Engine Power 74 hp/ 55 kW
Hydraulic System Open Centre
Pump Flow 128 l/min
Tear-Out Force/ Loader 4600 daN
Break-Out Force/ Loader 4200 daN
Lift Capacity @ Max Height 3759 kg
Lift Height/ Loader 3401 mm
Max Reach 6670 mm
Max Depth 5438 mm
Tear-Out Force/ Excavator 3540 daN
Break-Out Force/ Excavator 5400 daN
Center Mount

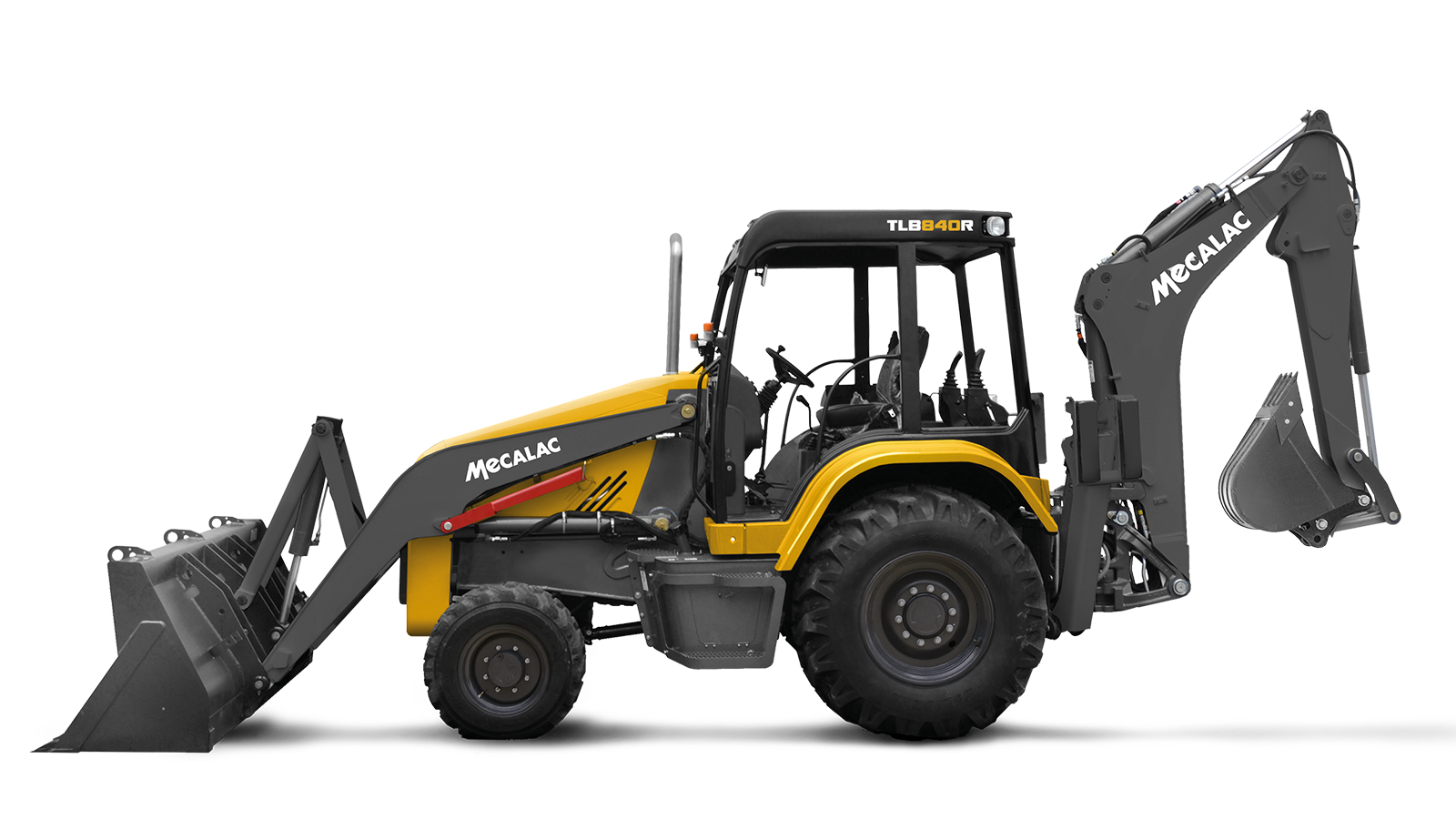

Designed with the rental market in mind the TLB840R features a powerful 55kw (74hp) Tier 4 Final / Stage IIIB engine with 390Nm (288lbf) of torque. Synchro shuttle transmission offers travel speeds of up to 38km/h (23mph) enabling quick transit between worksites. The curved excavator boom increases versatility when working in confined spaces where loading trucks close to the machine or working over objects is essential. Servo excavator controls with SAE/ISO changeover switch ensures any operator can become comfortable in a short space of time. The front loader features a 1m3 bucket as standard, high bucket tearout and lift heights make loading tasks quick and simple when combined with it’s class leading turning circle of 7.9m!
Images are for illustrative purposes only.
