Operating Weight 7695 kg
Overall Width 2310 mm
Turning Circle 7960 mm
Travel Speed 39 km/h
Engine Power 74 hp/ 55 kW
Hydraulic System Open Centre
Pump Flow 128 l/min
Tear-Out Force/ Loader 4600 daN
Break-Out Force/ Loader 4200 daN
Lift Capacity @ Max Height 3759 kg
Lift Height/ Loader 3509 mm
Max Reach 6995 mm
Max Depth 5744 mm
Tear-Out Force/ Excavator 4220 daN
Break-Out Force/ Excavator 6870 daN
Sideshift

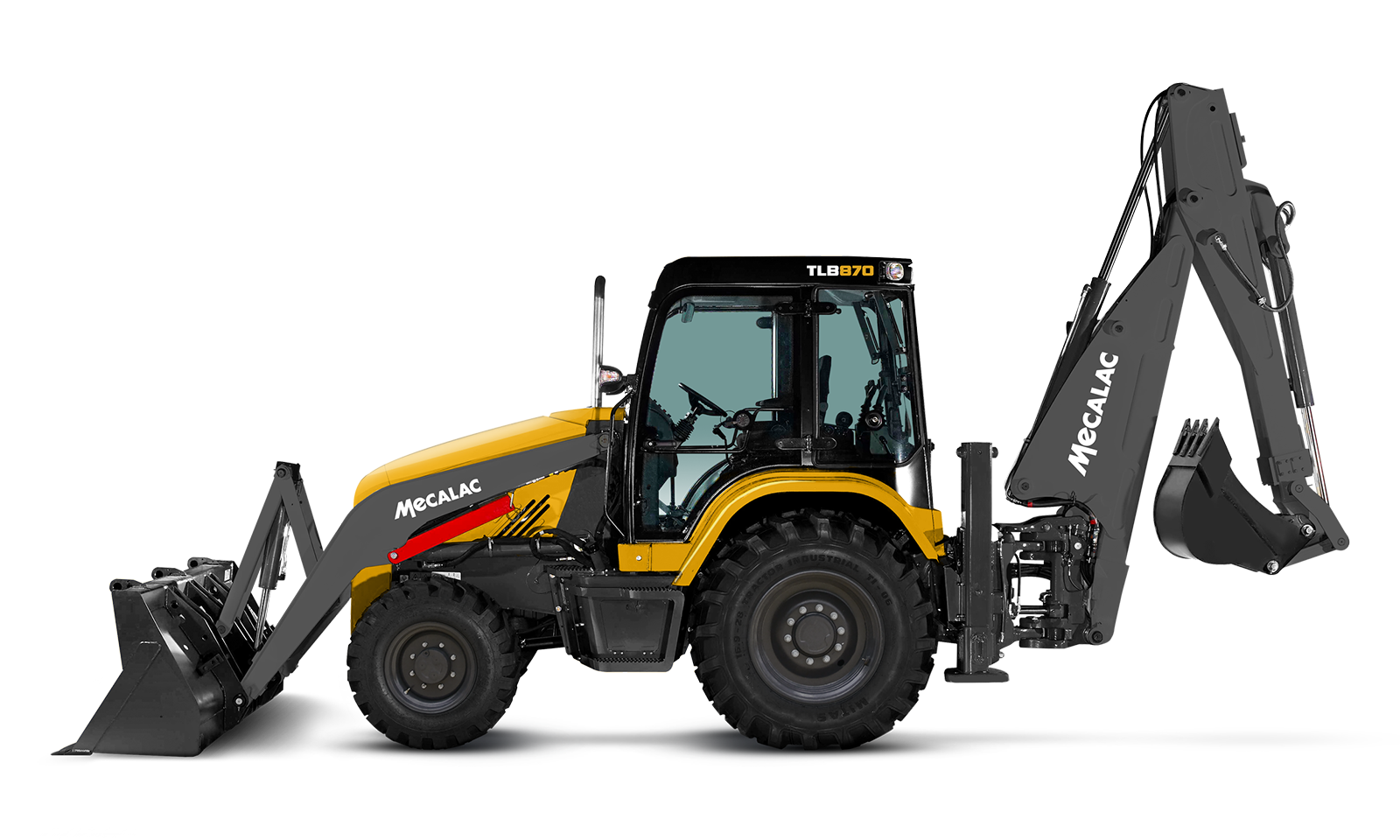

The TLB870 backhoe loader is the ideal choice for your backhoe fleet requirements, the TLB870 is our entry-level backhoe loader and offers ease of use whether excavating, rehandling, transporting material or driving
between sites. The 55kw (74hp) Stage IIIB (Tier 4 final) engine meets emissions regulations without the use of DPF’s or AdBlue, For non compliant regions a 70kw Stage IIIA (Tier 3) engine, both engines offer smooth power delivery and efficient operation. An intelligent and efficient ‘inloader’ hydraulic system provides automatic control of the tandem gear pump to provide improvements in fuel efficiency and control. Best in class excavator dig depth, reach and dipper tear out create an incredibly capable machine.
